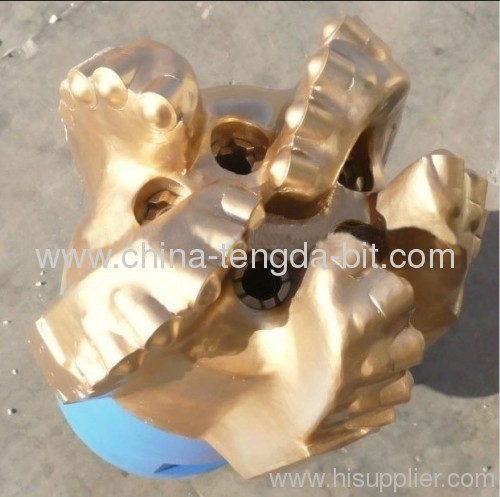

PDC rock bit with 5 blades and 5 nozzles from China manufacturer - Hejianshi Tengda Petroleum Supplies Co.,Ltd

Product Detail

Model No.: PDCwith 5 blade

Production Capacity: 200 pieces /month

Delivery Date: within 30 days after deposi...

material of bit body: matrix

Blade count: 5

formation: soft to medium hard

Means of Transport: Ocean,Land

Packing: wooden or steel boxes

Brand Name: Tengda

size: you can choose the size bel...

number of nozzles: 5NZ

colour: as customers request

Matrix body PDC bit
1.best price and high quality
2.5blade and 5 nozzles
3.can change the spiral nozzles
4.Spiral blades
5.Long service time

PDC

Specifications

1) Our bits are certified by SGS

2) Our pdc bits have fast drilling rate

3) our pdc bits possess strong cutting structure and durability

1,Suit for drilling soft to medium-hard formations.

2,Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented .

3,Composite gage protection and low torque design improve rate of penetration .

4,CFD hydraulic balance design results in better bit cleaning and cutting removal .

5,Combined utilization of high performance PDC compacts significantly prolongs bit life

6,Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation requirements with

available hydraulic flows.Allows for higherflow rates with minimal increase in pump pressure.

Feature:Diamonds are impregnated in the matrix behind the PDC cutters

Benefit:Increased footage drilled in abrasive applications.

The size you can choose

Parameter of PDCdrill bit						Drilling parameterrecommended
Size	No. of blades	Size of cutters	No. of nozzles	Size of gaugeprotection	Type of shank	Drilling rate	Weight on bit	Delivery capacity
in	No.	mm	No.	in	API	rpm	KN	l/s
5-7/8	3~4	19	4~8	2~3	3-1/2"Reg	60~350	20~120	20~35
6	3~5	19	4~8	2~3	3-1/2"Reg	60~350	20~120	20~35
8-1/2	4~6	19	4~8	2~3	4-1/2"Reg	60~350	25~120	25~38
9-1/2	4~6	19	4~8	2~3	6-5/8"Reg	60~350	25~120	30~40
12-1/4	5~7	19	6~8	2~4	6-5/8"Reg	60~350	30~140	40~60
16	5~7	19	6~10	2~4	7-5/8"Reg	60~300	30~200	40~70
17-1/2	5~7	19	6~10	2~4	7-5/8"Reg	60~300	30~200	40~70
22	5~8	19	6~10	2~5	8-1/2"Reg	60~300	30~300	50~80
26	5~8	19	6~10	2~5	8-5/8"Reg	60~300	30~300	50~90
Theseare some of our products, we can design and produce any size as yourrequirments.
