TCI tricone bit manual drilling tools stone drilling tools from China manufacturer - Hejianshi Tengda Petroleum Supplies Co.,Ltd

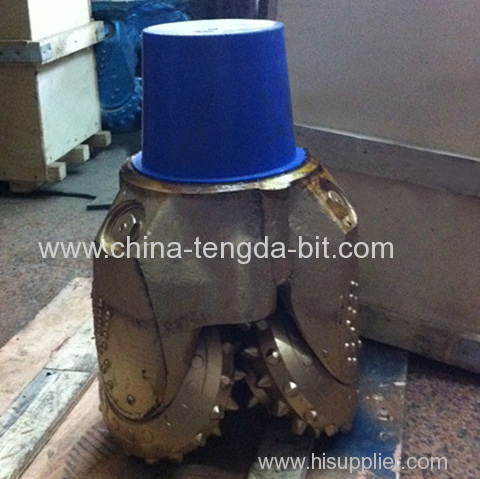

TCI tricone bit manual drilling tools stone drilling tools

Price:	200.0~20000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TD 12inch537 for oil mine c...

Production Capacity: 150 pieces per week

Delivery Date: within 5~7 days after order

colour: blue or gold or red or as y...

Type: Drill Bit

Machine Type: Drilling Equipment

Bearing Type: Sealed Bearing

Use: Well Drilling

Means of Transport: Ocean,Land

Packing: wood box or steel box

Brand Name: Tengda

Place of Origin: Hebei China (Mainland)

Material: Tungsten Carbide

Processing Type: Forging

Model Number: All sizes available

1) ISO9001&API
2)Covers all IADC codes
3)Size:12 1/4"
4)Used for oil well and water well

TD 12inch537 for oil mine cutting tools

Specifications

1.Tungsten carbide insert tooth, sealed and gage protection journal bearing
2.Meet strictly of API and ISO standard

Production Description:

These tungsten carbide insert bits are used to drill soft formation with low compressive strength and high drill ability, such as shale, clay, sandstone and soft limestone, etc.

1. Tungsten carbide insert tooth, sealed and gage protection journal bearing,hardfaced head bearing surface. cone bearing inlaid with friction reducing alloy and then silver plated. the load capacity and seizure resistance of the bearing is greatly improved

2.O- ring seal is made of the more wear resistance high saturated buna-N with the section and precissely designed sealing flange in the cone sealing area increased the reliability of the seal.
3.The bit bearing is ball which can be applied to high rotary speed drilling.
4.All rubber compensator is used which can provides the bearing system with good assurance of lubrication

5.New type of grease that can sustain high temperature up to 250C is utilized.

6.High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high touhness in combination with optimized comjpact numbers and rows, the exposure height and special shaped compacts.
7.Meet strictly of API standard

8.Manufacturer of TCI tricone bits, steel tooth tricone bits and PDC bits

9.High quality, reasonable price and best service.

10.Delivery on time

11.Good feedback of the clients

12.Be used for water well, oil field, underground, construction, geothermal well,etc

Size Available:

From 3 7/8"(98.4mm) to 26"(660.4mm)

Note:

Sizes and types that are not shown above can be customized according to specific drilling requirements
product details:

Operation process:
2013 Hotsale Milled Tooth TCI Tricone Bit & Steel Tooth Tricone Bit&Tricone...

If you are intrested in our products,feel free to contact us: 2013 Hotsale Milled Tooth TCI Tricone Bit & Steel Tooth Tricone Bit&Tricone...

Our products aremainly exported to the Middle East, Europe, Russia, America and some otherareas, we can ensure our drill bit are totaly new, we will provide 3 yearswarranty year and technical services. I know that our price is not the lowest,but we can ensure the quality, there are some malicious competition in ourindustry, they low the prices on purpose,Or when you recieved the goods,you findthe bits are renovated,it just don't work.In fact, many of them are scalpers,they sell the used drill bit as a totally new one in the lowerprice.

We can promise we will neverdo this kind of things.Our company has eatablished for 6 years,and has beendepend on quality to win the market,maybe you don't believe ourself's praise,butwe always believe that you will know our quality on your first use.You can useour one bit to judge what we say,and I believe we must not let youdown.
